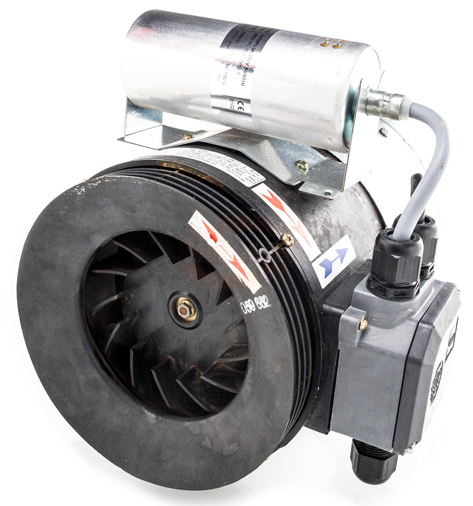

Helios RRK 200Ex Exproof Fan
88.565,00 TL
| RRK 200 EX |
| CENTRIFUGAL IN-LINE DUCT FAN 1 PH, EXPLOSION PROOF SPIGOT DIA. 180 MM |
Centrifugal fan specially designed to be installed in-line in circular ducting. Highly efficient backward curved centrifugal impeller made from polymers. Dynamially balanced to class G 6.3 DIN and ISO 1940 T.1. Totally enclosed, single phase condenser motor with low-noise, sealed for life ball bearings, tropical protection of windings, maintenance free and radio suppressed. |
Katolog için tıklayınız
| Ref.no. | 5890 |
| Model | RRK 200 EX |
| Description | CENTRIFUGAL IN-LINE DUCT FAN 1 PH, EXPLOSION PROOF SPIGOT DIA. 200 MM |
| Actual pressure | static |
| Actual volume | |
| Max.Vol. | 560 m³/h |
| Speed | 2860 min-1 |
| FLC un-controlled | 0.92 A |
| STC un-controlled | 2.852 A |
| Power | 0.20 kW |
| Voltage | 230 V / 1 ph / 50 Hz |
| Schutzart IP | 54 |
| Max. temp. | 50 °C |
| Wiring diagram no. | 453 |
| Weight | 7.15 kg |
| Delivery time | Ex stock |
